Wireless Triggering for V-Drums and Other Roland Drumming Gear

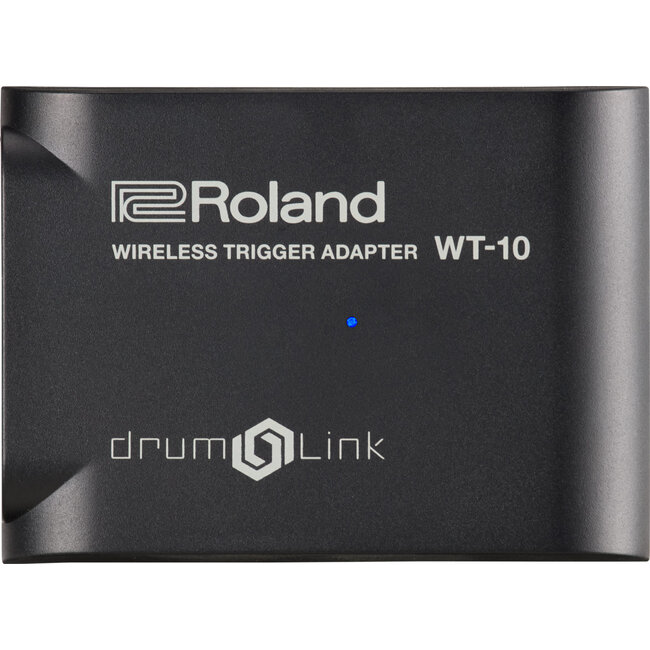

The advanced DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. When paired with the companion DH-10 DrumLink Hub, the WT-10 Wireless Trigger Adapter converts a wired pad to wireless triggering, providing lightning-fast response, rock-solid performance, and streamlined connectivity for quicker setup and a cleaner look. The WT-10 also offers an easy way for owners of Drum Workshop’s DWe acoustic-electronic wireless convertible drums to integrate Roland pads within their sets.

Learn more about the DrumLink system.

• Wireless trigger adapter for V-Drums sets and other Roland electronic drumming products
• Communicates wirelessly with the Roland DH-10 DrumLink Hub or DWe DrumLink Wireless Hub

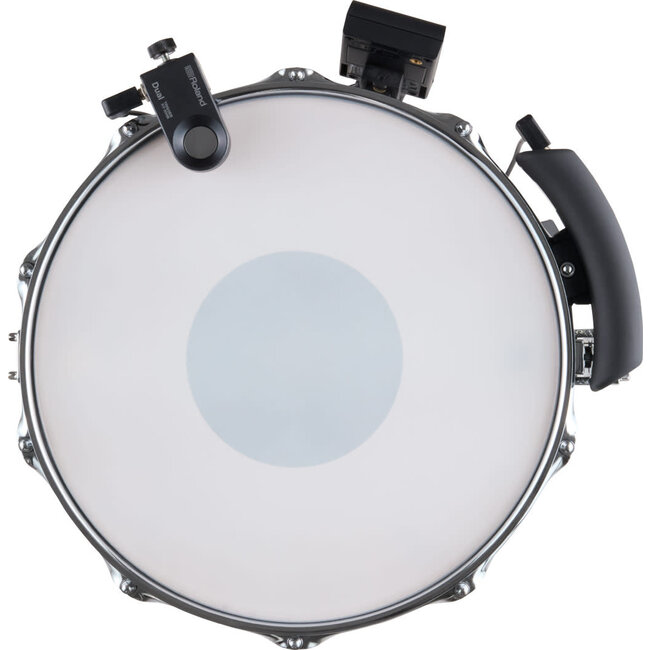

• Compatible with Roland drum and cymbal pads, RT-30 series acoustic drum triggers, and the BT-1 Bar Trigger Pad

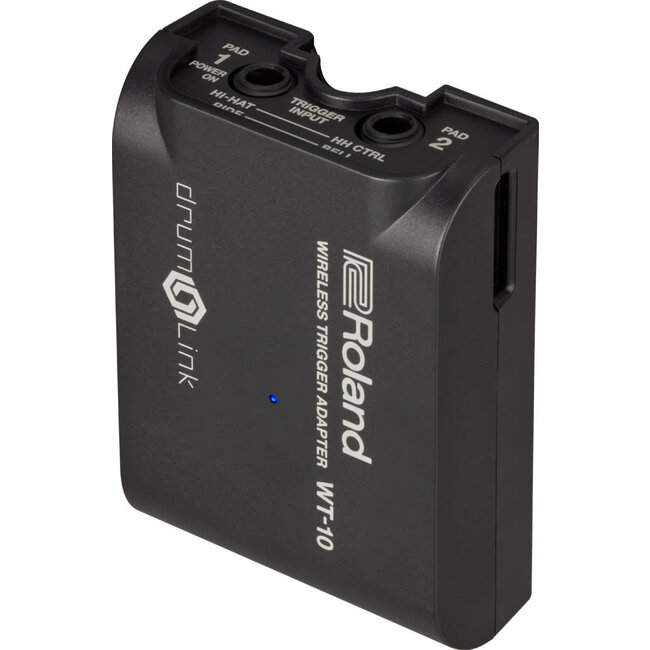

• Two trigger inputs that support single- or dual-trigger products
• Connect up to two different pads to one unit, a single cymbal pad with two outputs for bow/bell/edge triggering, or hi-hat pads with two trigger/control outputs

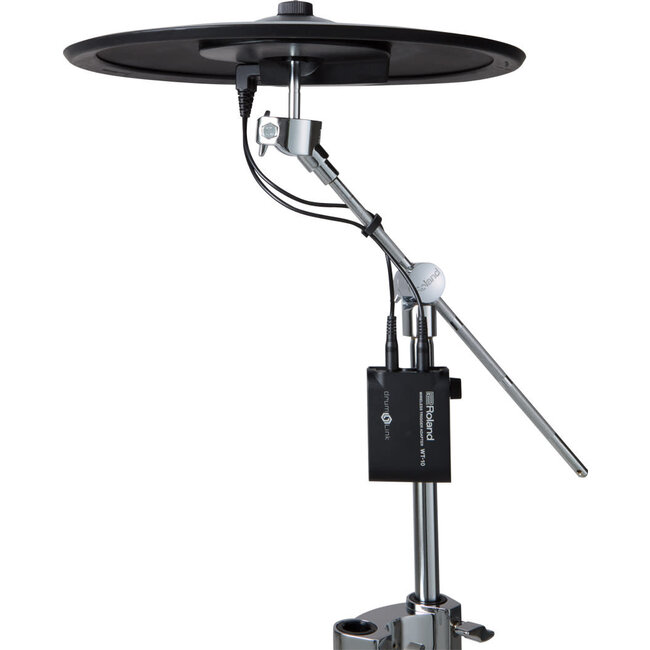

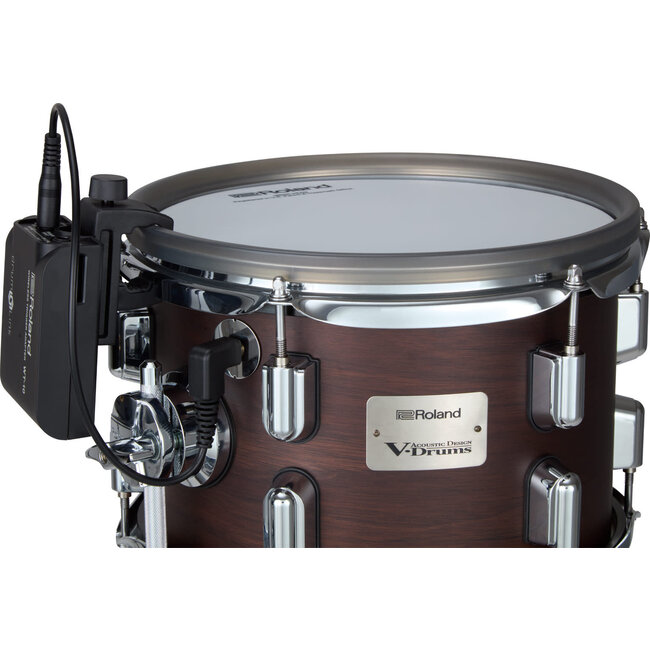

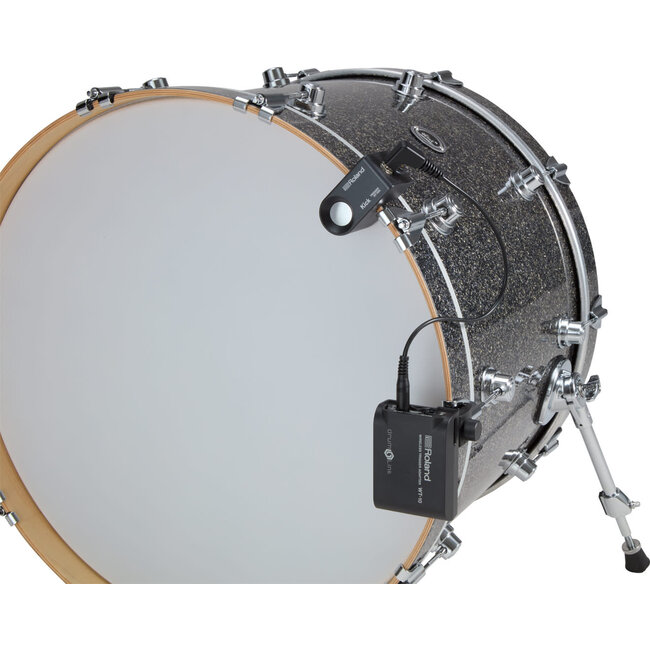

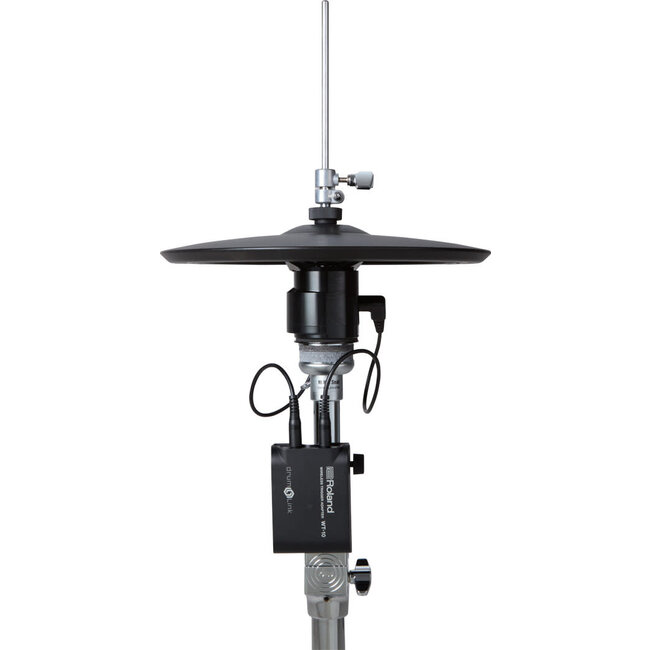

• Integrated mount for secure attachment to a drum/pad rim, bass drum hoop, or cymbal/hi-hat stand

Specifications

Wireless Format

Proprietary Protocol

Wireless Carrier Frequency

2.4-2.485 GHz ISM Band

Transmission Range

10 m (32 feet) line-of-sight
* May vary due to local conditions

Connectors

Trigger input jacks
(PAD1, PAD2)

Power Supply

Alkaline battery (AA, LR6) x 2

Battery Life

Approx. 6 months
* This can vary depending on the conditions of use.

Accessories

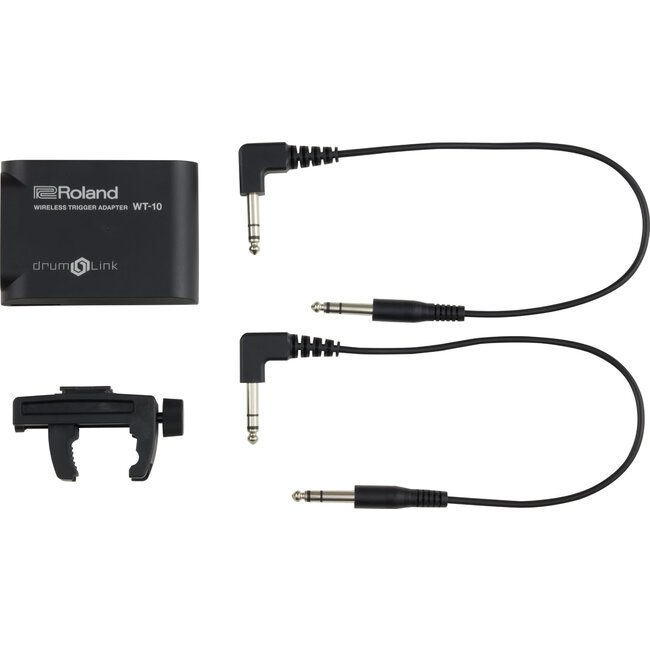

Clamp, Connection cables (0.4 m / 15 inches) x 2, Owner's Manual, Leaflet "USING THE UNIT SAFELY"

Size and Weight (Body)

Width

70 mm
2-13/16 inches

Depth

31 mm
1-1/4 inches

Height

98 mm
3-7/8 inches

Weight

170 g / 6 oz (including batteries)

Size and Weight (Including horizontal clamp)

Width

84 mm
3-5/16 inches

Depth

73 mm
2-7/8 inches

Height

98 mm
3-7/8 inches

Weight

225 g / 8 oz (including batteries and clamp)

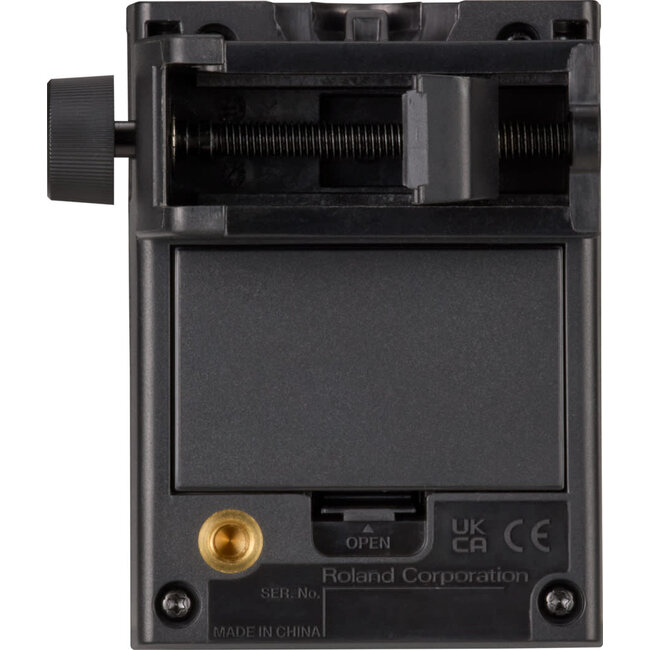

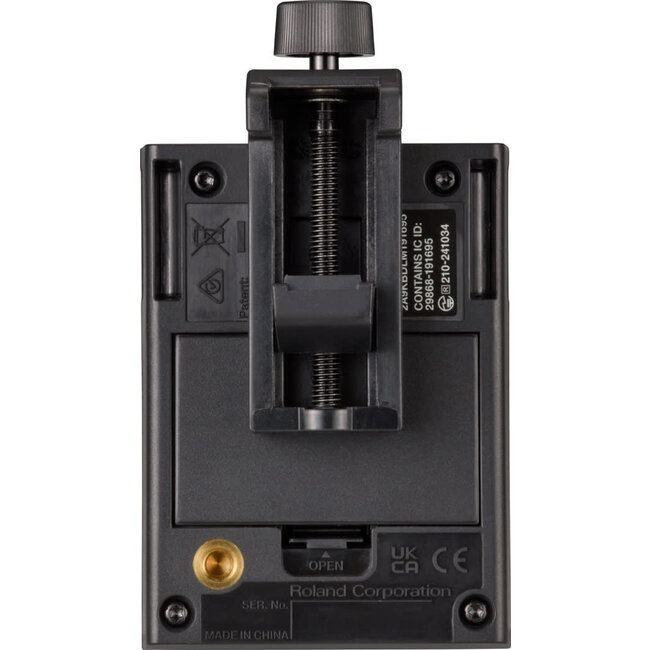

Clamp Mountable Diameter Size

Clamp Mountable Diameter Size

Φ4.5–32 mm
Φ3/16–1-5/16 inches
