Ideal for Perfecting Hi-Hat Techniques

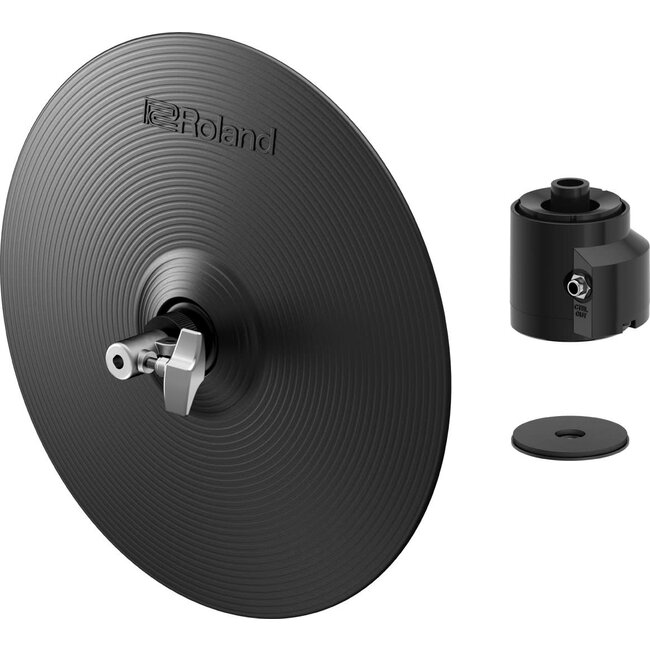

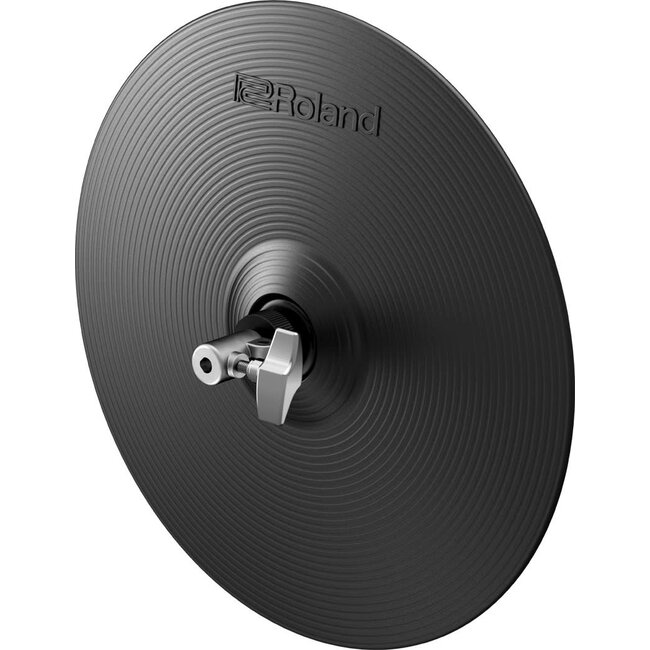

The VH-10 V-Hi-Hat uses a single-cymbal floating design that can be mounted and played on a traditional acoustic hi-hat stand. It provides the same playing feel as an acoustic hi-hat with natural rebound feel and swinging motion of the hi-hat cymbal. The depth at which you advance the pedal of the hi-hat stand smoothly varies the tonal character from open to closed, and you can also use hi-hat techniques such as half-closed playing and foot-splash. The VH-10 allows you to express the tonal change that occurs when you strike the hi-hat in the closed state before immediately opening it. You can even differentiate between strikes on the bow and edge of the cymbal, too.
- Replicates the natural swinging motion of an authentic hi-hat cymbal
- Light-weight cymbal, perfect for foot splash techniques and quick pedal control
- Differentiate between strikes on the bow and edge
- Striking surface uses rubber for silencing

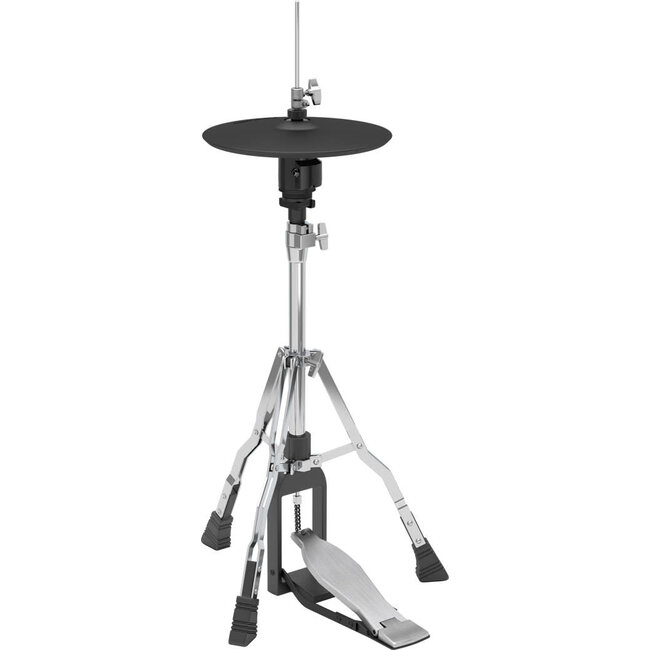

- Can be mounted on a traditional acoustic hi-hat stand
- Specifications
- Size
- 12 inches
- Triggers
- 2 (Bow, Edge)
- Connectors
- TRIGGER OUTPUT jack
CONTROL OUTPUT jack
- Acceptable rod diameters
- 6.0–7.0 mm (1/4–5/16 inches) (Rod bushes: Max. 11.7 mm (1/2 inches))
- Accessories
- Insulating plate
Connection cable x 2
Drum key
Tie with lock
Owner's Manual
Leaflet “USING THE UNIT SAFELY”
- Options (sold separately)
- Noise eater (NE-10, NE-1)
Hi-hat stand
- Size and Weight (Hi-hat)
- Width
- 314 mm
12-3/8 inches
- Depth
- 314 mm
12-3/8 inches
- Height
- 103 mm
4-1/16 inches
- Weight
- 1.2 kg
2 lbs 11 oz
- Size and Weight (Motion sensor unit)
- Width
- 77 mm
3-1/16 inches
- Depth
- 74 mm
2-15/16 inches
- Height
- 71 mm
2-13/16 inches
- Weight
- 0.2kg
8 oz
