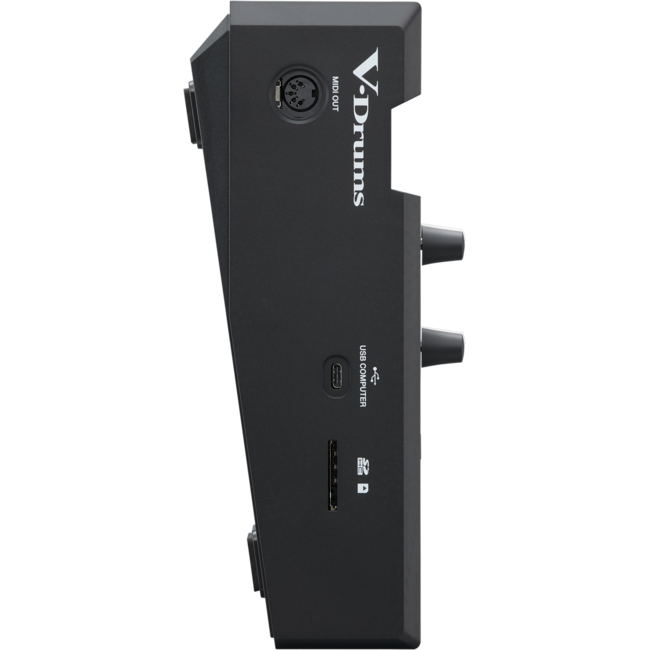

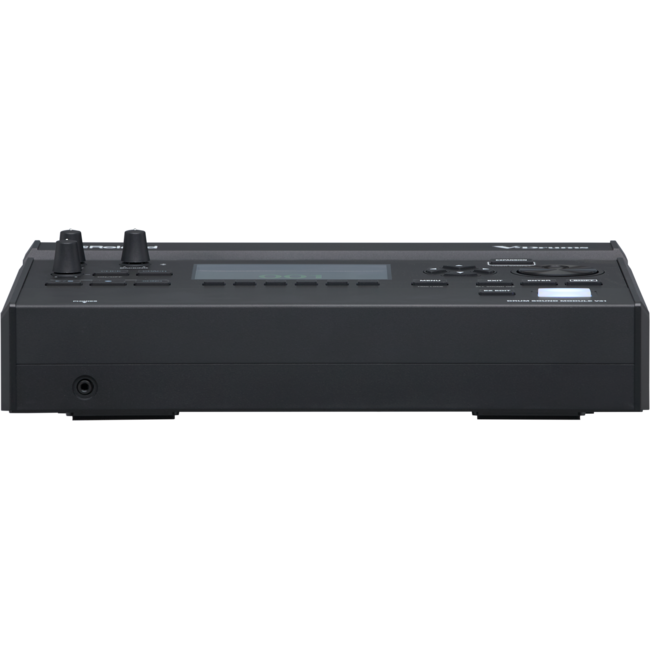

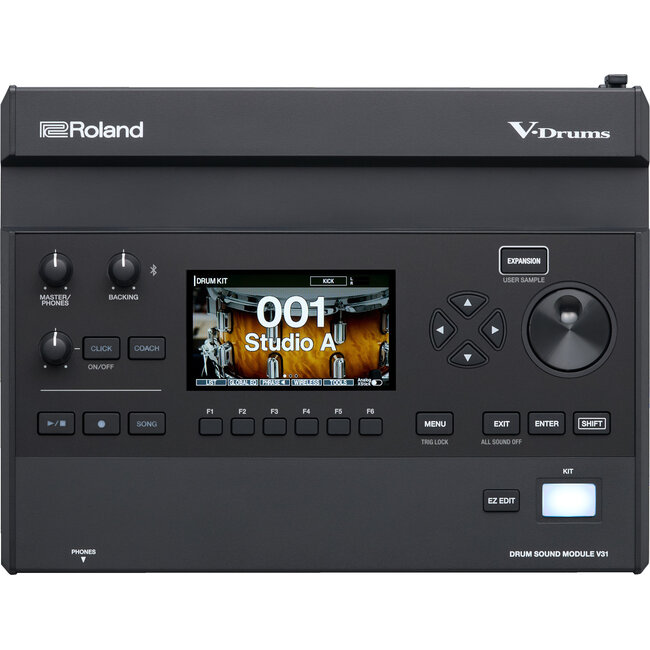

V31 V-Drums Sound Module

The V31 sound module is the core component of the V-Drums 3 Series, delivering the power and expression of Roland’s flagship V71 engine in a compact, accessible format. It combines next-generation response and multi-layered drum and cymbal instruments into a streamlined interface, giving drummers a premium sound experience without the bulk or complexity. And with onboard practice tools, Bluetooth audio, Wi-Fi, and smartphone app integration, you can practice smarter, perform with confidence, and grow your sound options with V-Drums Instrument Expansions and Kit Packs on Roland Cloud.

• Expandable V-Drums sound module powered by the same advanced drum engine as the top-tier V71
• Multi-sampled onboard sound library created in collaboration with DW
• Part of a unified ecosystem with the V71 and V51, offering full cross-compatibility with V-Drums Instrument Expansions and Kit Packs
• Quick edit controls for fast changes to tuning, muffling, and instrument types
• Multi-pin trigger cable harness and two ¼-inch analog trigger inputs
• Dedicated pad input for an advanced Roland digital snare, ride, or hi-hat pad
• Stereo audio output and MIDI out
• Analog mix input for a music playback device or Roland percussion pad
• Integrated coach mode with a phrase trainer, stroke monitor, and other advanced tools, plus exclusive Melodics content for V-Drums players

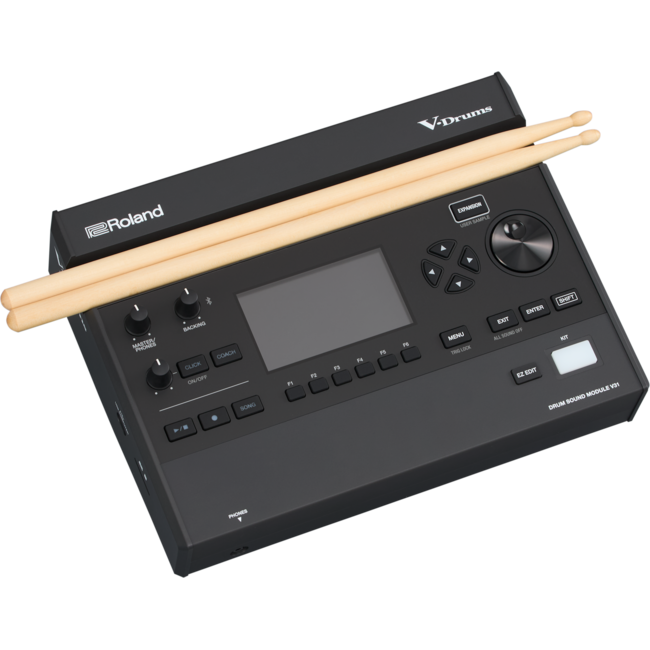

• Dedicated space on the panel to store drumsticks when not in use
• USB-C multi-channel audio and MIDI connectivity for seamless integration with DAWs and software-based instruments
• Bluetooth audio for streaming music and backing tracks from a mobile device
• Audio recording and song playback via SD media
• Wireless support and smartphone app integration for expansion management and control of key module features
• Expand your creative options with an ever-growing range of sound content on Roland Cloud, including multi-layered V-Drums Instrument Expansions based on premium DW drum sets

Specs:

-Drum Kits
200 (Preset: More than 70)

-Instruments
More than 1,000

-Effect Types
Layer Transient: each layer
Layer Equalizer: each layer
Pad Equalizer: each pad (by head and rim)
Pad Compressor: each pad (head and rim common)
Overhead Mic Simulator
Room/Reverb/Kit Resonance
Bus Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
Bus Reverb
Master Compressor
Master Equalizer

-User Sample Import
Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

-Song Player (SD card)
Audio File: WAV (44.1 kHz, 16/24 bits), MP3

-Recorder
Recording Method: Realtime
Maximum Note Storage: approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16 bits), SMF
or
Recording Method: Realtime
Maximum length: 60 min (temporary recording: 1 min) (*1)
File format: WAV (44.1 kHz, 16 bits)

-Display
Graphic color LCD 4.3 inch

-External Memory
SD card (SDHC supported)

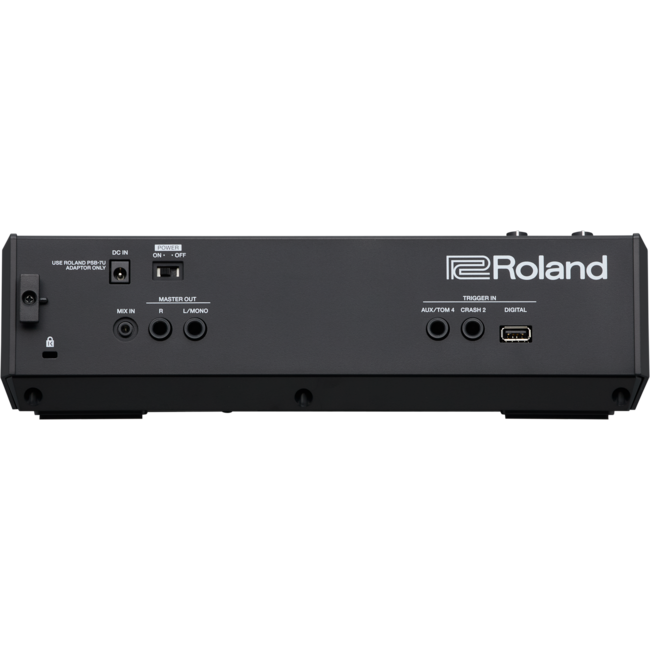

-Connectors
TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) (Exclusion use with digital pad)
TRIGGER IN jack x 2: 1/4-inch TRS phone type (CRASH 2, AUX/TOM 4)
DIGITAL TRIGGER IN port x 1: USB A
MASTER OUT jacks (L/MONO, R): 1/4-inch phone type, unbalanced
PHONES jack x 1: Stereo miniature phone type
MIX IN jack x 1: Stereo miniature phone type
MIDI OUT connector
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
DC IN jack

-Number of USB Audio Record/Playback Channels
--Vendor Mode
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 30 channels
Playback: 32 channels

--Generic Mode
Sampling Rate (Original): 44.1 kHz
Record: 2 channels
Playback: 2 channels

-Power Supply
AC adaptor

-Current Draw
1,100 mA

-Power consumption when in off mode (when the power automatically turns off)
0.24 W

-Dimensions
316 (W) x 246 (D) x 97 (H) mm
12-1/2 (W) x 9-11/16 (D) x 3-7/8 (H) inches

-Weight
2.2 kg
4 lbs 14 oz

-Accessories
Quick Start
Roland Cloud Connect Setup Guide
AC adaptor (PSB-7U)
Special connection cable
Sound module mounting plate set
Leaflet "USING THE UNIT SAFELY"

-Options (sold separately)
Pad: PD series, PDX series, PDQ series, BT-1
Cymbal: CY series, CYQ series
Kick: KD series, KDQ series, KT series
Hi-Hat: VH series
Hi-Hat Control Pedal: FD series
Acoustic Drum Trigger: RT series
Personal Drum Monitor: PM series
V-Drums Accessory Package: DAP-3X
V-Drums Mat: TDM series
Noise Eater: NE series

(*1) Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 1 minutes.
