The TD-02 series brings you the world’s finest entry-level electronic drumming experience—at an affordable price. Backed by decades of V-Drums innovation, these compact and highly expressive kits are far greater than the sum of their parts. Every element works together to form a complete musical foundation, from the world-class sounds and ultra-responsive pads to the onboard practice tools, robust hardware, and practical features for reducing noise when playing at home. And with expansion options such as Bluetooth® connectivity for mobile devices, upgradable pads, and more, you can easily grow your setup with genuine Roland accessories as needs evolve.

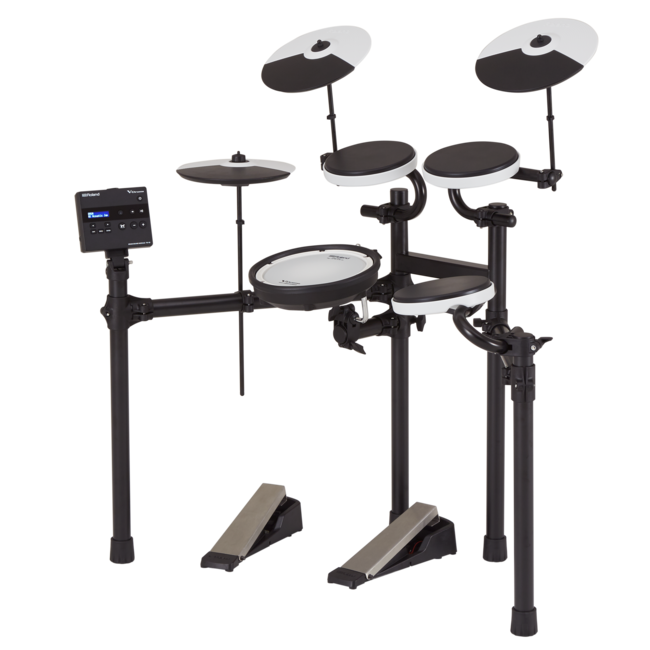

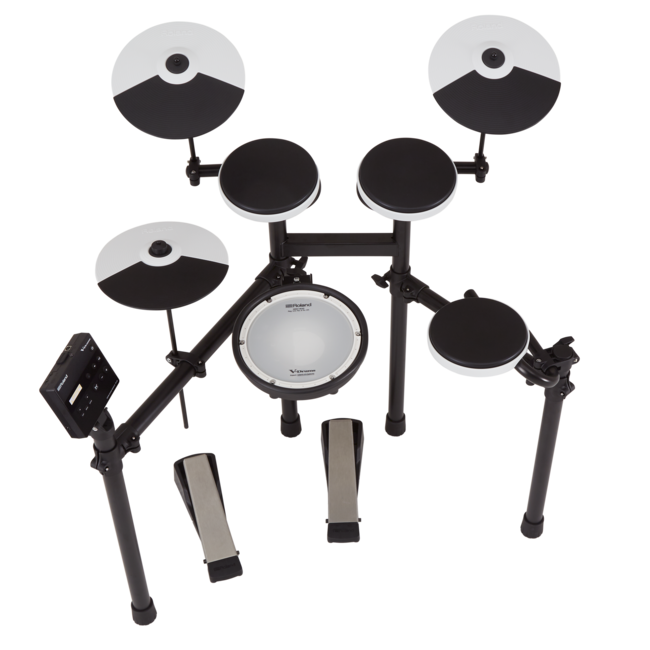

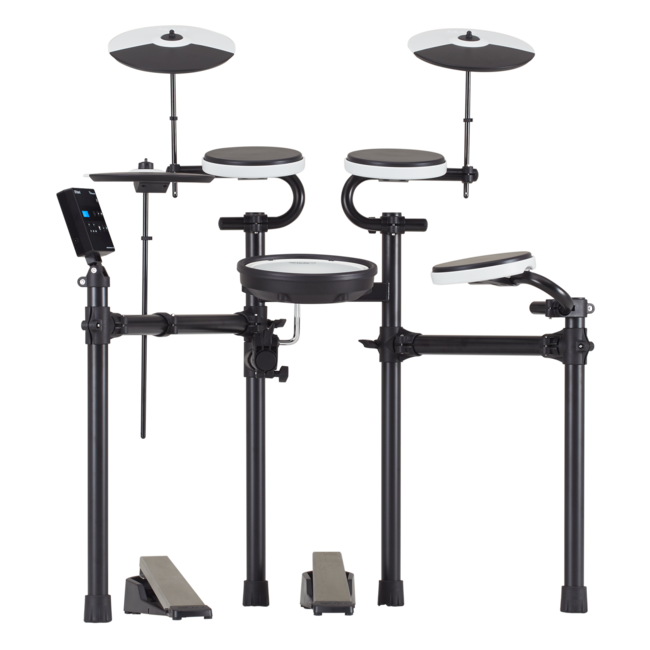

The TD-02KV is the top-line model in the series, featuring a mesh-head snare pad with natural acoustic stick feel and a rugged four-post stand with a wide acoustic-style playing layout. The kit also includes three tom pads, a quiet beaterless kick pedal, and three cymbal pads (hi-hat, crash, and ride).

Highlights

• High-quality electronic drum kit for new and returning drummers, with authentic V-Drums sound, expression, and playability

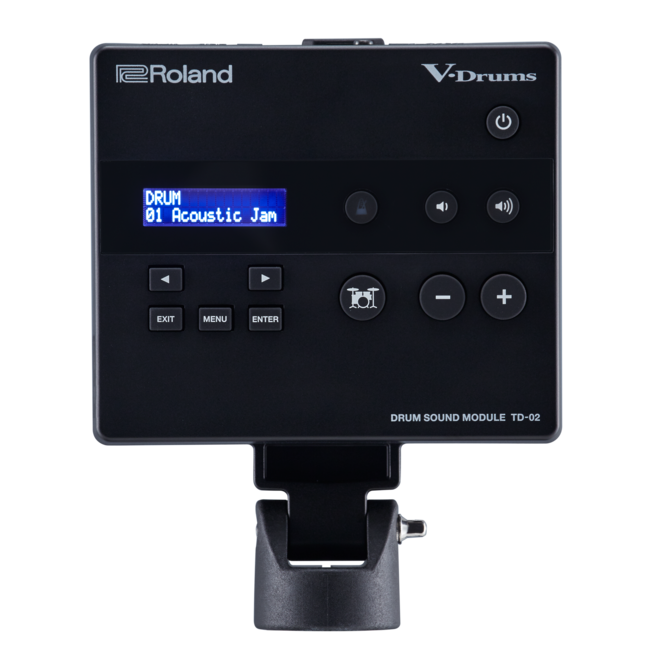

• TD-02 module with 16 ready-to-play kits inspired by high-end V-Drums

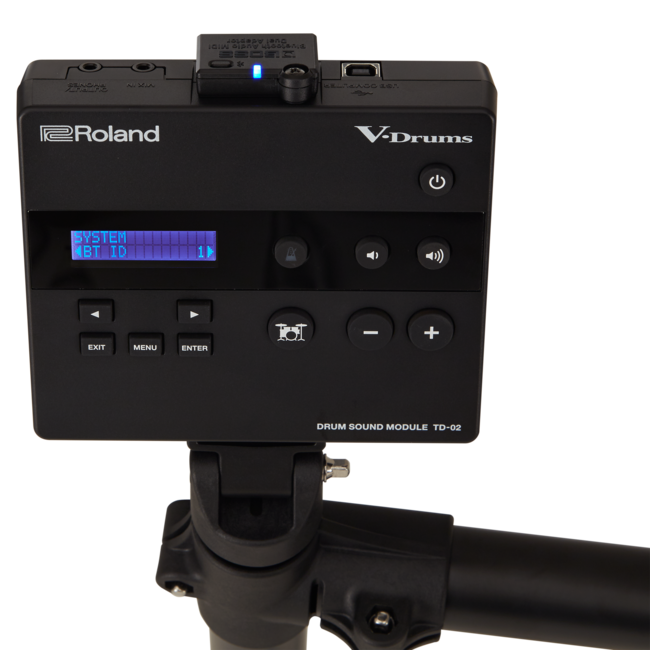

• Add wireless audio/MIDI streaming to the module with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor
• Onboard Coach functions for guided practice and steady development of drumming skills
• Built-in metronome with dedicated panel control and numerous rhythm subdivision and sound options
• Upgraded PDX-8 mesh-head snare pad with natural acoustic stick feel and cross-stick playability
• Three tom pads and three cymbal pads (hi-hat, crash, and ride) with sensitive playing surfaces and expressive response for developing proper techniques
• Kick trigger and hi-hat controller pedals with noise-reducing design features for minimizing sound transfer to other rooms
• Rugged and stable four-post stand with a wide acoustic-style layout
• Perfectly adjust the response of each pad to your playing touch with a deep array of sensitivity settings
• Headphones output for quiet practice
• Audio input for drumming with music from a smartphone or music player
• USB audio/MIDI connectivity for working with music production apps on computers and mobile devices
• Expand and upgrade your drumming experience with a wide range of V-Drums accessories

SPECIFICATIONS

- Kit Configuration (*1)
Drum sound module: TD-02 x 1
Snare: PDX-8 x 1
Tom: PD-4 x 3
Hi-Hat: CY-5 x 1
Hi-Hat control pedal: FD-1 x 1
Crash: CY-5 x 1
Ride: CY-5 x 1
Kick: KT-1 x 1
Drum Stand: MDS-LITE x 1

- Drum Kits
16

- Coach Functions (5 modes)
Time Check (easy)
Time Check (hard)
Quiet Count
Auto Up/Down
Change-Up

- Metronome
Tempo (20--260)
Rhythm Type (5 types)
Sounds (15 types)

- Display
16 Characters x 2 Lines LCD (with backlight)

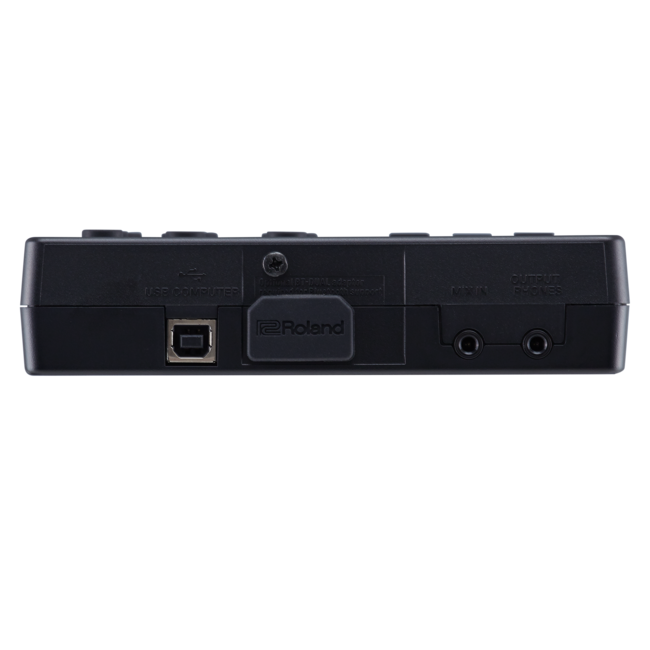

- Connectors
OUTPUT/PHONES Jack: Stereo Miniature Phone Type
MIX IN Jack: Stereo Miniature Phone Type
USB COMPUTER Port: USB B Type
TRIGGER INPUT Connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
Bluetooth ADAPTOR SLOT: Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)

-USB COMPUTER
Speed: Full-speed USB (Generic), Hi-Speed USB (Vendor)
Driver Mode: Generic, Vender
Protocol: USB MIDI, USB Audio *2

-USB Audio
Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 Channels
Playback: 2 Channels

-Power Supply
AC Adaptor (DC 12 V)

- Current Draw
200 mA

-Dimensions
1,200 (W) x 1,100 (D) x 1,200 (H) mm
47-1/4 (W) x 43-5/16 (D) x 47-1/4 (H) inches
(Including the drum throne)

-Weight
14.3 kg / 31 lbs 7 oz

- Accessories
Setup Guide
Leaflet "USING THE UNIT SAFELY"
AC Adaptor
Special Connection Cable
Drum Key

- Options (sold separately)
Additional Crash Cymbal (Crash 2): OP-TD1C
Kick: KD Series
Personal Drum Monitor: PM series
V-Drums Accessory Package: DAP-2X
V-Drums Mat: TDM Series
Noise Eater: NE Series
Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)

*1 Drum throne, drumsticks, and headphones are not included.
*2 In order to use USB audio, switch to vendor mode and use the vendor driver.
