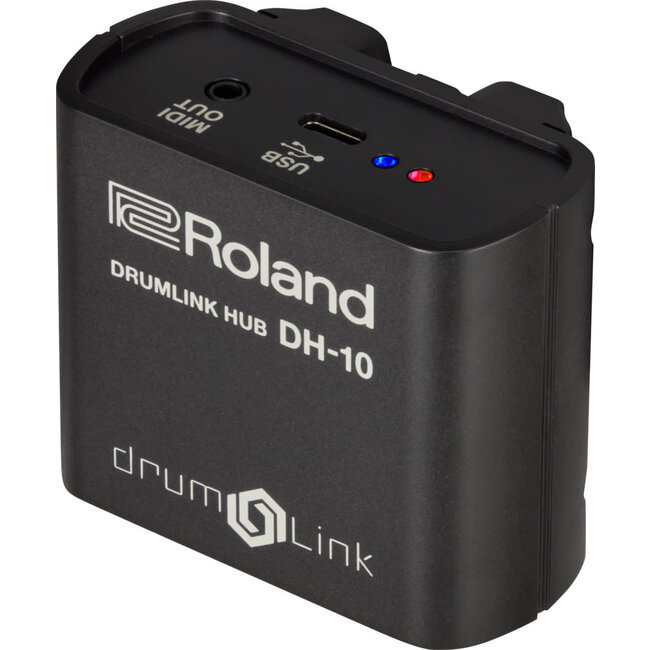

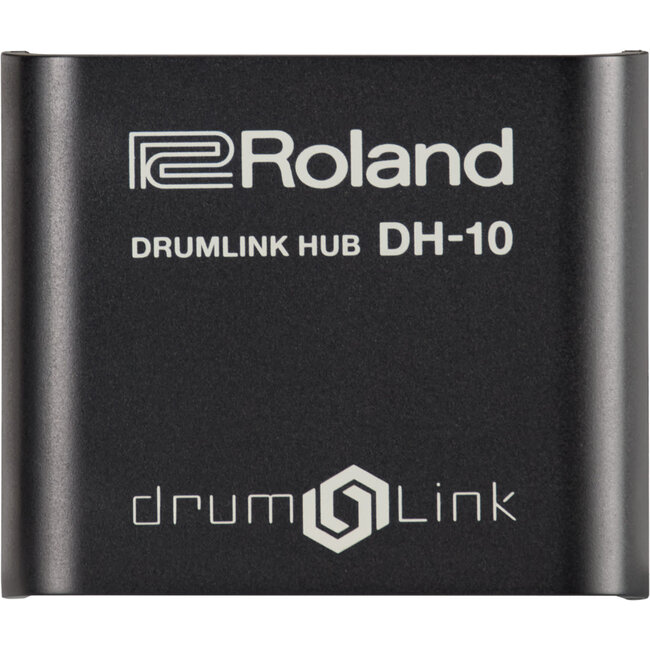

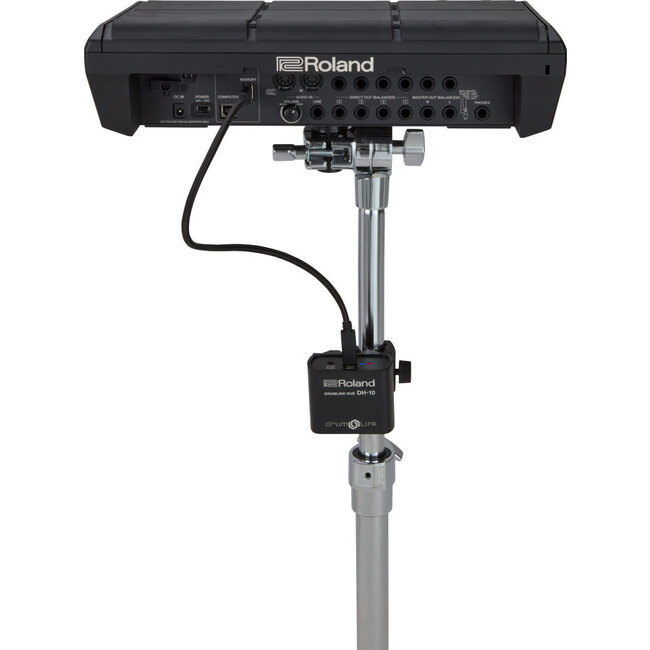

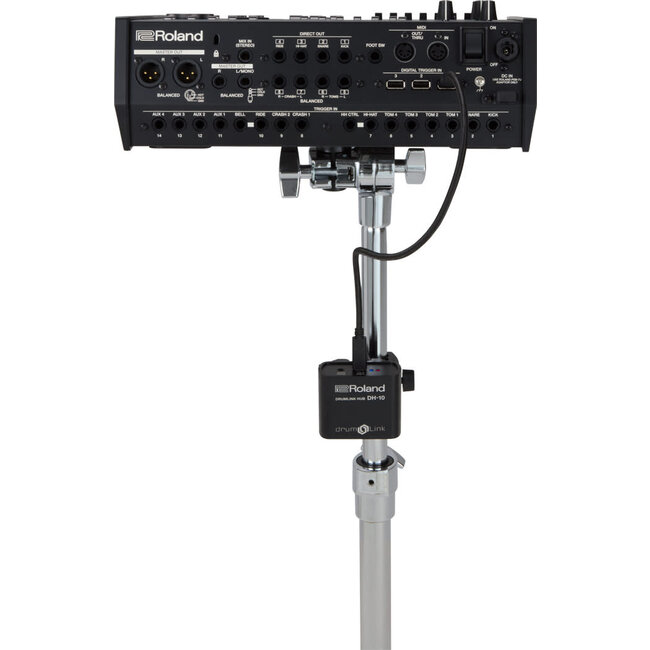

The advanced DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. The compact DH-10 DrumLink Hub captures trigger signals from multiple WT-10 Wireless Trigger Adapter units and sends them to a V71, TD-50X, or TD-27 V-Drums sound module, SPD-SX PRO Sampling Pad, or a computer.
- Wireless receiver for the Roland DrumLink system
- Compatible with the V71, TD-50X, and TD-27 V-Drums sound modules and SPD-SX PRO Sampling Pad
- Receives trigger signals from multiple WT-10 Wireless Trigger Adapter units
- Connects to the V-Drums module or a computer via USB-C or MIDI
- Specifications
- Wireless Format
- Proprietary Protocol
- Wireless Carrier Frequency
- 2.4-2.485 GHz ISM Band
- Transmission Range
- 10 m (32 feet) line-of-sight
* May vary due to local conditions
- Connectors
- USB Port: USB Type-C(R)
MIDI OUT connector: TRS mini type
- Power Supply
- Supplied from via USB
- Accessories

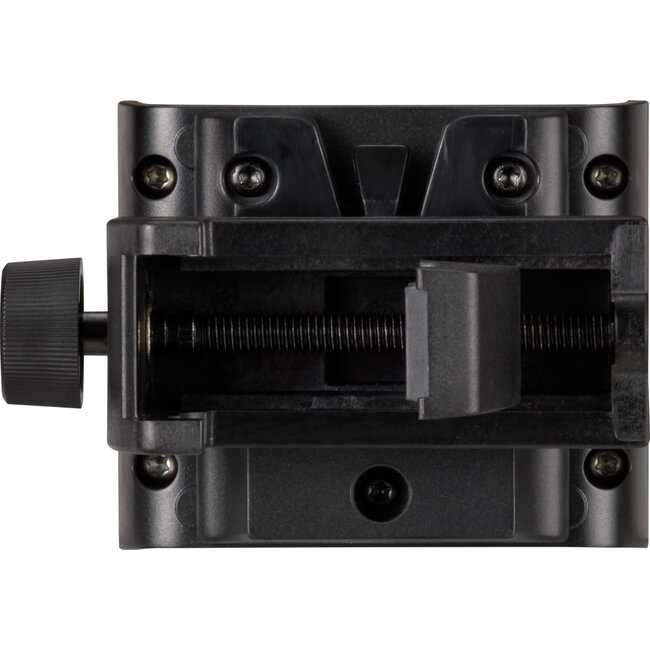

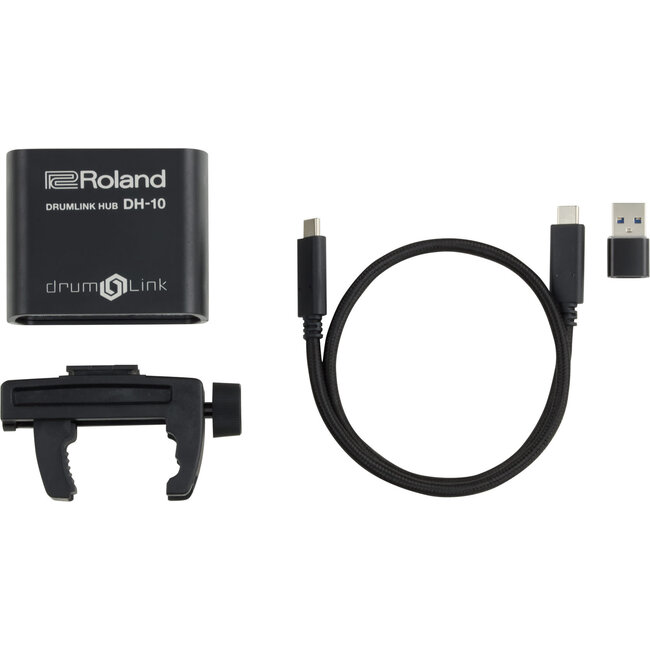

- Clamp, USB Type-C(R) cable (0.5 m / 19 inches), Type-C(R) to A adaptor, Owner's Manual, Leaflet "USING THE UNIT SAFELY"
- Size and Weight (Body)
- Width
- 70 mm
2-13/16 inches
- Depth
- 45 mm
1-13/16 inches
- Height
- 58 mm
2-5/16 inches
- Weight
- 65 g / 3 oz
- Size and Weight (Includes horizontal clamp)
- Width
- 84 mm
3-5/16 inches
- Depth
- 88 mm
3-1/2 inches
- Height
- 58 mm
2-5/16 inches
- Weight
- 120 g / 5 oz
- Clamp Mountable Diameter Size
- Clamp Mountable Diameter Size
- Φ4.5–32 mm
Φ3/16–1-5/16 inches
