Roland Cymbal Pack for DWe Acoustic-Electronic Wireless Convertible Drum Sets

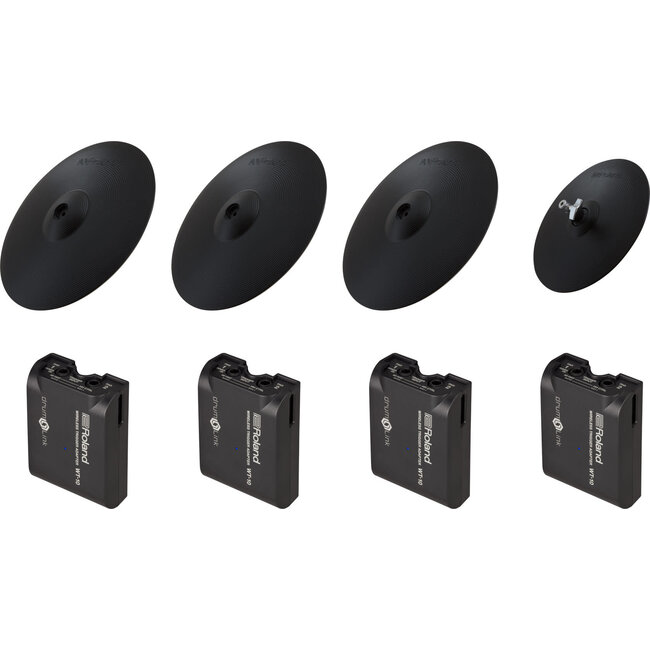

The 4CY-4WT-01 DrumLink Cymbal Pack provides a ready-made solution for outfitting a Drum Workshop DWe acoustic-electronic wireless convertible drum set with Roland electronic cymbals. Includes three CY-16R-T crash/ride pads, one VH-10 V-Hi-Hat pad, and four WT-10 Wireless Trigger Adapters.
Learn more about the DrumLink system.
- Cymbal pack for DWe acoustic-electronic wireless convertible drum sets from Drum Workshop
- Three CY-16R-T crash/ride pads
- One VH-10 V-Hi-Hat pad
- Four WT-10 Wireless Trigger Adapters
- WT-10 units communicate wirelessly with the DWe DrumLink Wireless Hub
Specs:
- VH-10: Hi-Hat
- Size
- 12 inches
- Trigger
- 2 (Bow, Edge)
- Connectors
- TRIGGER OUTPUT jack, CONTROL OUTPUT jack
- Accessories
- Owner’s Manual, Leaflet "USING THE UNIT SAFELY", Motion sensor unit, Insulating plate, Cable tie
- Size and Weight — VH-10: Hi-Hat
- Width
- 314 mm
12-3/8 inches
- Depth
- 314 mm
12-3/8 inches
- Height
- 103 mm
4-1/16 inches
- Weight
- 1.2 kg
2 lbs 11 oz
(Excluding motion sensor unit)
- CY-16R-T: Cymbal
- Size
- 16 inches
- Trigger
- 3 (Bow, Bell, Edge)
- Connectors
- BELL OUTPUT jack, BOW/EDGE OUTPUT jack
- Accessories
- Owner’s manual, Leaflet "USING THE UNIT SAFELY", Cymbal nut, Felt washer, Stopper, Cable tie
- Size and Weight — CY-16R-T: Cymbal
- Width
- 407 mm
16-1/16 inches
- Depth
- 407 mm
16-1/16 inches
- Height
- 56 mm
2-1/4 inches
- Weight
- 1.3 kg / 2 lbs 14 oz
- WT-10: Wireless Trigger Adapter
- Wireless Format
- Proprietary Protocol
- Wireless Carrier Frequency
- 2.4-2.485 GHz ISM Band
- Transmission Range
- 10 m (32 feet) line-of-sight
* May vary due to local conditions
- Connectors
- Trigger input jacks
(PAD1, PAD2)
- Power Supply
- Alkaline battery (AA, LR6) x 2
- Battery Life
- Approx. 6 months
* This can vary depending on the conditions of use.
- Accessories
- Clamp, Connection cables (0.4 m / 15 inches) x 2, Owner's Manual, Leaflet "USING THE UNIT SAFELY"
- Size and Weight — WT-10 (Body)
- Width
- 70 mm
2-13/16 inches
- Depth
- 31 mm
1-1/4 inches
- Height
- 98 mm
3-7/8 inches
- Weight
- 170 g / 6 oz (including batteries)
- Size and Weight — WT-10 (Includes horizontal clamp)
- Width
- 84 mm
3-5/16 inches
- Depth
- 73 mm
2-7/8 inches
- Height
- 98 mm
3-7/8 inches
- Weight
- 225 g / 8 oz (including batteries and clamp)
- Clamp Mountable Diameter Size
- Clamp Mountable Diameter Size
- Φ4.5–32 mm
Φ3/16–1-5/16 inches
